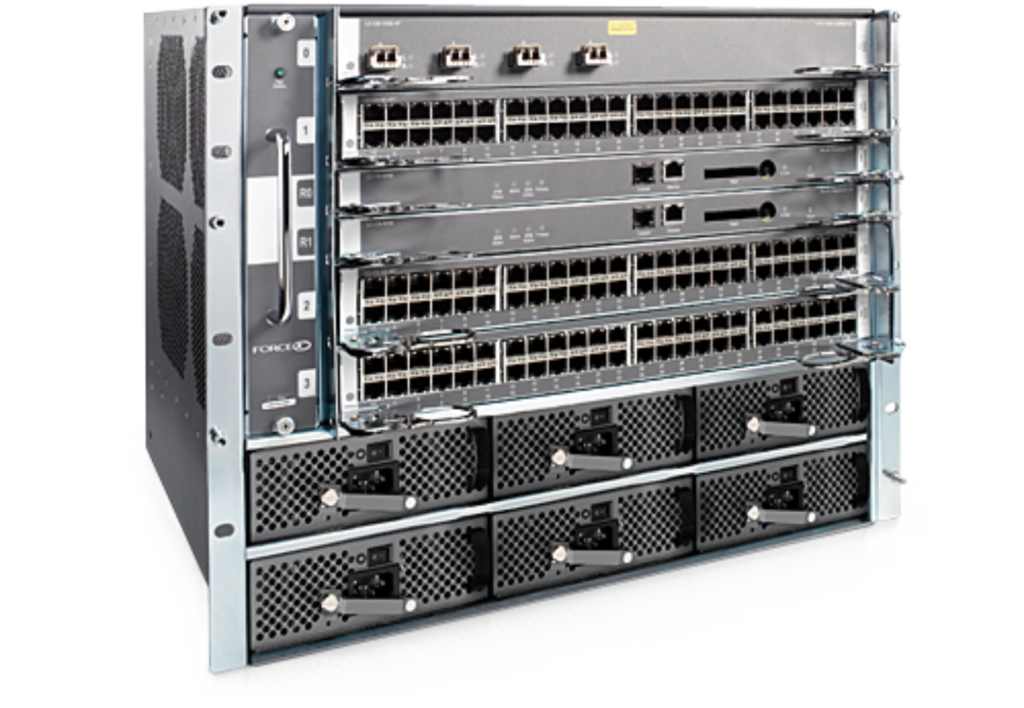

Dell Force 10 sample config

! Version 7.7.1.2
! Last configuration change at Sat Sep  3 14:55:58 2016 by admin
! Startup-config last updated at Sat Sep  3 14:56:02 2016 by admin
!
boot system rpm0 primary flash://FTOS-CB-7.7.1.2.bin
boot system rpm0 default flash://FTOS-CB-7.7.1.2.bin
!
redundancy auto-failover-limit count 3 period 60
redundancy auto-synchronize full
redundancy primary rpm0
!
hardware watchdog
!
hostname Textil-Patizan
!
enable password 7 b12579b2083040aa2e0f238a7c
!
username admin password 7 1da289f33f923r55c privilege 15
!
linecard 1 E48PB
!
interface GigabitEthernet 1/0
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/1
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/2
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/3
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/4
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/5
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/6
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/7
 description USERS_BOX_123
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/8
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/9
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/10
 description USERS_BOX_162
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/11
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/12
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/13
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/14
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/15
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/16
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/17
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/18
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/19
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/20
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/21
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/22
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/23
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/24
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/25
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/26
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/27
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/28
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/29
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/30
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/31
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/32
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/33
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/34
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/35
 description USERS_BOX_32532
 no ip address
 switchport
 speed 100
 no negotiation auto
 shutdown
!
interface GigabitEthernet 1/36
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/37
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/38
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/39
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/40
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/41
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/42
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/43
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/44
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/45
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/46
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 1/47
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
linecard 2 E48PB
!
interface GigabitEthernet 2/0
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/1
 description USERS_BOX_775
 no ip address
 switchport
 speed 100
 no negotiation auto
 shutdown
!
interface GigabitEthernet 2/2
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/3
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/4
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/5
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/6
 description USERS_BOX_100
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/7
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/8
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/9
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/10
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/11
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/12
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/13
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/14
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/15
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/16
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/17
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/18
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/19
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/20
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/21
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/22
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/23
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/24
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/25
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/26
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/27
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/28
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/29
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/30
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/31
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/32
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/33
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/34
 description USERS_BOX_9812
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/35
 description fail
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/36
 description fail
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/37
 description USERS_BOX_50
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/38
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/39
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/40
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/41
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/42
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/43
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 2/44
 no ip address
 switchport
 no shutdown
!
interface GigabitEthernet 2/45
 description UPLINK
 no ip address
 switchport
 no shutdown
!
interface GigabitEthernet 2/46
 description USERS_BOX_205
 no ip address
 switchport
 no shutdown
!
interface GigabitEthernet 2/47
 description USERS_BOX_65
 no ip address
 switchport
 no shutdown
!
linecard 3 E48PB
!
interface GigabitEthernet 3/0
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/1
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/2
 description USERS_BOX­_138
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/3
 description USERS_BOX_5551
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/4
 description USERS_BOX_13
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/5
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/6
 description USERS_BOX_55512
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/7
 description USERS_BOX_233111
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/8
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/9
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/10
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/11
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/12
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/13
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/14
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/15
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/16
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/17
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/18
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/19
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/20
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/21
 description pusto
 no ip address
 switchport
 speed 100
 no negotiation auto
 shutdown
!
interface GigabitEthernet 3/22
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/23
 description pusto
 no ip address
 switchport
 speed 100
 no negotiation auto
 shutdown
!
interface GigabitEthernet 3/24
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/25
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/26
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/27
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/28
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/29
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/30
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/31
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/32
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/33
 description pusto
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/34
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/35
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/36
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/37
 description link_up/down
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/38
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/39
 description USERS_BOX_41287
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/40
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/41
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/42
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/43
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/44
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/45
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/46
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface GigabitEthernet 3/47
 no ip address
 switchport
 speed 100
 no negotiation auto
 no shutdown
!
interface ManagementEthernet 0/0
 no ip address
 speed 10
 no shutdown
!
interface ManagementEthernet 1/0
 speed 10
 duplex half
 shutdown
!
interface Vlan 1
!
interface Vlan 100
 ip address 10.20.30.38/24
 tagged GigabitEthernet 2/44-47
 no shutdown
!
interface Vlan 101
 no ip address
 no shutdown
!
interface Vlan 174
 no ip address
 tagged GigabitEthernet 0/0-1
 tagged GigabitEthernet 2/44-45,47
 untagged GigabitEthernet 0/2-25
 untagged GigabitEthernet 2/36-37
 untagged GigabitEthernet 3/0-25
 no shutdown
!
interface Vlan 175
 no ip address
 tagged GigabitEthernet 0/0-1
 tagged GigabitEthernet 2/44-45
 untagged GigabitEthernet 0/26-47
 untagged GigabitEthernet 1/0-1
 untagged GigabitEthernet 3/26-47
 no shutdown
!
interface Vlan 176
 no ip address
 tagged GigabitEthernet 0/0-1
 tagged GigabitEthernet 2/44-45
 untagged GigabitEthernet 1/2-25
 no shutdown
!
interface Vlan 177
 no ip address
 tagged GigabitEthernet 0/0-1
 tagged GigabitEthernet 2/44-45
 untagged GigabitEthernet 1/26-47
 untagged GigabitEthernet 2/0-1
 no shutdown
!
interface Vlan 179
 no ip address
 tagged GigabitEthernet 0/0-1
 tagged GigabitEthernet 2/44-45
 untagged GigabitEthernet 2/2-25
 no shutdown
!
ip route 0.0.0.0/0 10.20.30.1
!
logging facility local1
logging source-interface GigabitEthernet 2/45
logging 10.20.30.7
!
banner motd ^C
 disnetern
^C
!
snmp-server community public ro
snmp-server enable traps snmp authentication coldstart linkdown linkup
!
line console 0
line vty 0
line vty 1
line vty 2
line vty 3
line vty 4
line vty 5
line vty 6
line vty 7
line vty 8
line vty 9
!
end
