Lightning Edge LE-327 пример конфига

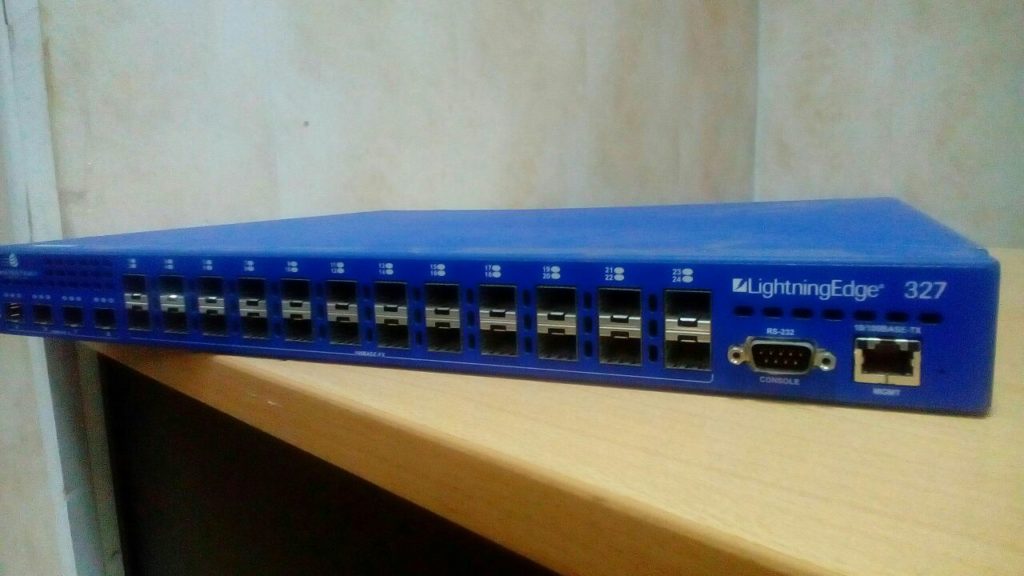

Пример конфигурации управляемого свитча Lightning Edge 327

Стандартный логин/пароль на вход su/wwp

Создается 1 влан сервисный, для управления свича, тегированый, и влан для клиентов не тегированый.

LE-327> configuration show
! LE-327 Configuration File
! Chassis MAC:   xx:xx:xx:xx:xx:xx
! Created:       Sat Apr 10 16:59:26 2004
! Created by:    su
! SW Package:    Slot 1 - leos-04-05-00-0009
! Build Number:  2438
! MIB Number:    02-05-00-0005
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! NETWORK CONFIG:  vlans
vlan create vlan 100,143
vlan create vlan 654
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! EVENT LOG MANAGER:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! CHASSIS CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SYSTEM CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! INTERFACE CONFIG:
interface remote set ip 10.20.30.40 subnet 255.255.255.0
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! INTERFACE LOCAL CONFIG:
interface set gateway 10.20.30.1
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! DNS CLIENT CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! NTP CLIENT CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SYSLOG CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! PORT CONFIG: ports
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! NETWORK CONFIG:  vlan members and attributes
!
vlan add vlan 654 port 1
vlan remove vlan 127 port 1
vlan add vlan 654 port 2
vlan remove vlan 127 port 2
vlan add vlan 654 port 3
vlan remove vlan 127 port 3
vlan add vlan 654 port 4
vlan remove vlan 127 port 4
vlan add vlan 654 port 5
vlan remove vlan 127 port 5
vlan add vlan 654 port 6
vlan remove vlan 127 port 6
vlan add vlan 654 port 7
vlan remove vlan 127 port 7
vlan add vlan 654 port 8
vlan remove vlan 127 port 8
vlan add vlan 654 port 9
vlan remove vlan 127 port 9
vlan add vlan 654 port 10
vlan remove vlan 127 port 10
vlan add vlan 654 port 11
vlan remove vlan 127 port 11
vlan add vlan 654 port 12
vlan remove vlan 127 port 12
vlan add vlan 654 port 13
vlan remove vlan 127 port 13
vlan add vlan 654 port 14
vlan remove vlan 127 port 14
vlan add vlan 654 port 15
vlan remove vlan 127 port 15
vlan add vlan 654 port 16
vlan remove vlan 127 port 16
vlan add vlan 654 port 17
vlan remove vlan 127 port 17
vlan add vlan 654 port 18
vlan remove vlan 127 port 18
vlan add vlan 654 port 19
vlan remove vlan 127 port 19
vlan add vlan 654 port 20
vlan remove vlan 127 port 20
vlan add vlan 654 port 21
vlan remove vlan 127 port 21
vlan add vlan 654 port 22
vlan remove vlan 127 port 22
vlan add vlan 654 port 23
vlan remove vlan 127 port 23
vlan add vlan 654 port 24
vlan remove vlan 127 port 24
vlan add vlan 108,143 port 25
vlan add vlan 654 port 25
vlan remove vlan 127,1 port 25
vlan add vlan 108,143 port 26
vlan add vlan 654 port 26
vlan remove vlan 127,1 port 26
vlan add vlan 108,143 port 27
vlan add vlan 654 port 27
vlan remove vlan 127,1 port 27
vlan add vlan 108,143 port 28
vlan add vlan 654 port 28
vlan remove vlan 127,1 port 28
!
vlan rename vlan 143 name vlan_143
vlan rename vlan 654 name vlan_654
!
interface remote set vlan 100
vlan delete vlan 127
!
port set port 1 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 2 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 3 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 4 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 5 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 6 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 7 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 8 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 9 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 10 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 11 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 12 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 13 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 14 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 15 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 16 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 17 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 18 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 19 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 20 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 21 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 22 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 23 acceptable-frame-type all pvid 654 egress-untag-vlan 654
port set port 24 acceptable-frame-type all pvid 654 egress-untag-vlan 654
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! PORT STATE GROUP CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! PBT CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! MPLS CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! TUNNEL CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! VIRTUAL-CIRCUIT CONFIG:  virtual circuits
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! VIRTUAL-SWITCH CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! FLOW/RED CURVE CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! FLOW/QOS CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! AGING and LEARNING CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SERVICE ACCESS CONTROL CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! STATIC MAC CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! BCAST FILTER CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! PROTOCOL FILTER CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! L2 CFT CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! RSTP CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! MSTP CONFIG:
mstp disable
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! LACP CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! LLDP CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! OAM CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! DHCP CLIENT
dhcp client disable
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! DHCP RELAY AGENT
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! MULTICAST SERVICES CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! RADIUS CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SECURITY CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SHELL CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! TELNET CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SSH CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! DOT1X CONFIG:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! SNMP CONFIG:
