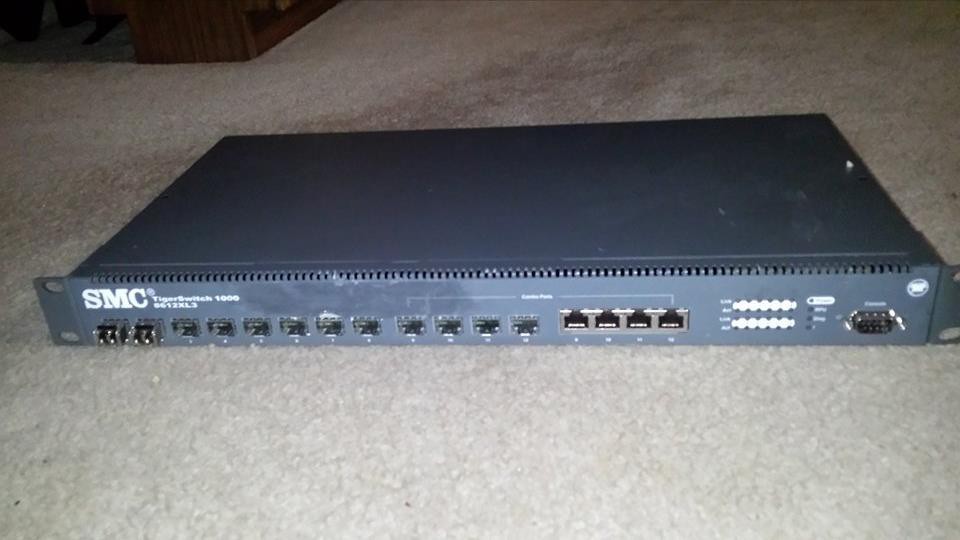

Config SMC TigerSwitch 1000 8612XL3

Пример конфигурации управляемого коммутатора. 1 управляющий влан и два клиентских влана, настроенные порты на тегированый и не тегированые вланы.

!
SNTP server 0.0.0.0 0.0.0.0 0.0.0.0
!
!
snmp-server community private rw
snmp-server community public rw
!
!
username "admin" access-level 15
username "admin" password 7 "212321297a57a5a743894a2e4a841fc3"
username "guest" access-level 0
username "guest" password 7 "084e0343a1486ff05530df3c705c5bb4"
enable password level 15 7 "212321297a57a5a743894a2e4a841fc3"
!
!
!
!
!
!
!
VLAN database
 VLAN 1 name "DefaultVlan" media ethernet state active
 VLAN 100 media ethernet state active
 VLAN 140 name "vlan_140" media ethernet state active
 VLAN 141 name "vlan_141" media ethernet state active
!
!
!
!
!
!
spanning-tree MST-configuration
!
!
!
!
!
!
!
interface ethernet 1/1
 description UPLINK
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140,141 tagged
!
interface ethernet 1/2
 description DOWNLINK_1
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140 tagged
!
interface ethernet 1/3
 description DOWNLINK_2
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140 tagged
!
interface ethernet 1/4
 description DOWNLINK_3
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140 tagged
!
interface ethernet 1/5
 description DOWNLINK_4
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,141 tagged
!
interface ethernet 1/6
 description DOWNLINK_5
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,141 tagged
!
interface ethernet 1/7
 description DOWNLINK_6
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140 tagged
!
interface ethernet 1/8
 description DOWNLINK_UN_1
 switchport allowed VLAN add 1,141 untagged
 switchport native VLAN 141
 switchport allowed VLAN add 1 tagged
!
interface ethernet 1/9
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport mode trunk
 switchport allowed VLAN add 1,100,140 tagged
!
interface ethernet 1/10
 description SERVICE
 switchport allowed VLAN add 1 untagged
 switchport native VLAN 1
 switchport allowed VLAN add 108 tagged
!
interface ethernet 1/11
 description OFFICE
 switchport allowed VLAN add 1,140 untagged
 switchport native VLAN 140
 switchport allowed VLAN add 108,141 tagged
!
interface ethernet 1/12
 description USERS
 shutdown
 switchport allowed VLAN add 1,141 untagged
 switchport native VLAN 141
 switchport allowed VLAN add 108 tagged
!
!
!
interface VLAN 1
 IP address DHCP
!
!
!
!
interface VLAN 100
 IP address 10.20.30.17 255.255.255.0
!
!
interface VLAN 140
!
!
interface VLAN 141
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
IP route 0.0.0.0 0.0.0.0 10.20.30.1 metric 1
!
!
!
!
!
!
!
no map IP precedence
no map IP DSCP
!
!
!
!
!
!
!
line console
!
!
line VTY
!
!
!
end
!
