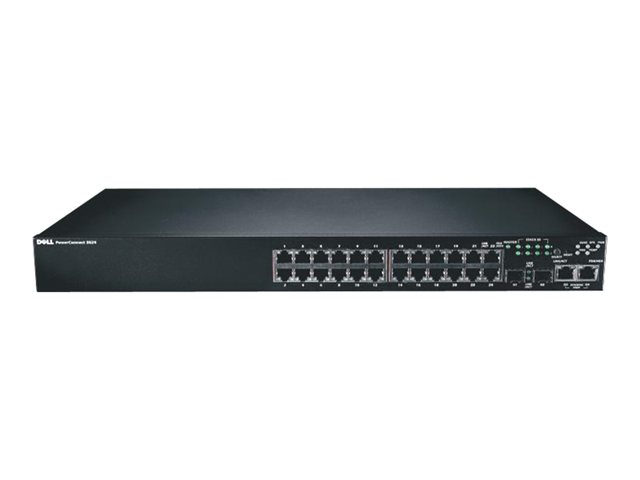

Пример конфигурации Dell PowerConnect 3524 (48)

Пример настройки Dell PowerConnect 3524, 3548. Здесь настраивается один управляющий влан для коммутатора, и второй для клиентов. С защитой от флуда.

interface range ethernet e(1-48)
port storm-control broadcast enable
port storm-control broadcast rate 500
spanning-tree portfast
exit
interface range ethernet e(24-48)
shutdown
exit
bridge aging-time 100
bridge multicast filtering
interface range ethernet e(1-48)
dot1x multiple-hosts
exit
interface range ethernet e(1-48)
port security mode max-addresses
exit
interface range ethernet e(1-48)
port security discard
exit
interface range ethernet e(1-48)
switchport protected ethernet g1
exit
interface range ethernet all
switchport mode general
exit
vlan database
vlan 18,262
exit
interface range ethernet e(1-48)
switchport general pvid 262
exit
interface range ethernet g(1-4)
switchport general allowed vlan add 18
exit
interface range ethernet e(1-48)
switchport general allowed vlan add 262 untagged
exit
interface range ethernet g(1-4)
switchport general allowed vlan add 262
exit
voice vlan oui-table add 0001e3 Siemens_AG_phone________
voice vlan oui-table add 00036b Cisco_phone_____________
voice vlan oui-table add 00096e Avaya___________________
voice vlan oui-table add 000fe2 H3C_Aolynk______________
voice vlan oui-table add 0060b9 Philips_and_NEC_AG_phone
voice vlan oui-table add 00d01e Pingtel_phone___________
voice vlan oui-table add 00e075 Polycom/Veritel_phone___
voice vlan oui-table add 00e0bb 3Com_phone______________
ip igmp snooping
interface vlan 262
ip igmp snooping
exit
ip dhcp snooping
ip dhcp snooping vlan 262
interface ethernet g1
ip dhcp snooping trust
exit
interface ethernet g2
ip dhcp snooping trust
exit
interface ethernet g3
ip dhcp snooping trust
exit
interface ethernet g4
ip dhcp snooping trust
exit
interface vlan 18
ip address 10.20.20.177 255.255.255.0
exit
ip default-gateway 10.20.20.1
hostname Module3_1
username admin password f6fdffe48c908deb0f4c3bd36c032e72 level 15 encrypted
no ip http server
no ip https server
