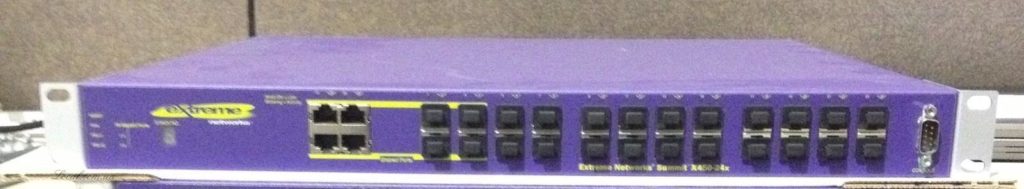

Extreme x450-24x extended config

show configuration
#
# Module devmgr configuration.
#
configure snmp sysName "SummitX450-24x"
configure snmp sysContact "support@extremenetworks.com, +1 888 257 3000"
configure sys-recovery-level switch reset

#
# Module vlan configuration.
#
configure vlan Default tag 1
create vlan "vlan_100"
configure vlan vlan_100 tag 100
create vlan "vlan_1500"
configure vlan vlan_1500 tag 1500
create vlan "vlan_200"
configure vlan vlan_200 tag 200
create vlan "vlan_650"
configure vlan vlan_650 tag 650
create vlan "vlan_662"
configure vlan vlan_662 tag 662
create vlan "vlan_663"
configure vlan vlan_663 tag 663
create vlan "vlan_671"
configure vlan vlan_671 tag 671
create vlan "vlan_672"
configure vlan vlan_672 tag 672
create vlan "vlan_673"
configure vlan vlan_673 tag 673
enable snmp traps port-up-down port 1
configure ports 1 display-string 1.Module1
enable snmp traps port-up-down port 2
configure ports 2 display-string 2.Module2
enable snmp traps port-up-down port 3
configure ports 3 display-string 3.Module3
enable snmp traps port-up-down port 4
configure ports 4 display-string 4.Module4
enable snmp traps port-up-down port 5
configure ports 5 display-string 5.UPLINK
enable snmp traps port-up-down port 6
configure ports 6 display-string 6.downlink1
enable snmp traps port-up-down port 7
configure ports 7 display-string 7.downlink2
enable snmp traps port-up-down port 8
configure ports 8 display-string 8.downlink3
enable snmp traps port-up-down port 9
configure ports 9 display-string 9.downlink4
enable snmp traps port-up-down port 10
configure ports 10 display-string 10.downlink5
enable snmp traps port-up-down port 11
configure ports 11 display-string 11.downlink6
enable snmp traps port-up-down port 12
disable port 12
enable snmp traps port-up-down port 13
disable port 13
enable snmp traps port-up-down port 14
disable port 14
enable snmp traps port-up-down port 15
disable port 15
enable snmp traps port-up-down port 16
disable port 16
enable snmp traps port-up-down port 17
disable port 17
enable snmp traps port-up-down port 18
disable port 18
enable snmp traps port-up-down port 19
disable port 19
enable snmp traps port-up-down port 20
disable port 20
enable snmp traps port-up-down port 21
disable port 21
enable snmp traps port-up-down port 22
disable port 22
enable snmp traps port-up-down port 23
disable port 23
enable snmp traps port-up-down port 24
disable port 24
enable snmp traps port-up-down port 25
configure ports 25 auto off speed 10000 duplex full
enable snmp traps port-up-down port 26
configure ports 26 auto off speed 10000 duplex full
configure vlan Default delete ports all
configure vlan vlan_100 add ports 1-9, 11-26 tagged
configure vlan vlan_100 add ports 10 untagged
configure vlan vlan_1500 add ports 1-5, 12-26 tagged
configure vlan vlan_200 add ports 1-5, 12-26 tagged
configure vlan vlan_650 add ports 1-5, 12-26 tagged
configure vlan vlan_662 add ports 1-5, 12-26 tagged
configure vlan vlan_663 add ports 1-5, 12-26 tagged
configure vlan vlan_671 add ports 1-5, 11-26 tagged
configure vlan vlan_672 add ports 1-10, 12-26 tagged
configure vlan vlan_673 add ports 1-5, 12-26 tagged
configure vlan vlan_100 ipaddress 10.20.30.168 255.255.255.0
configure qosscheduler strict-priority

#
# Module fdb configuration.
#
configure fdb agingtime 300
configure fdb vpls agingtime 300
configure iparp vr VR-Default max_entries 4096
configure iparp vr VR-Default max_pending_entries 256
configure iparp vr VR-Default max_proxy_entries 256
configure iparp vr VR-Default timeout 20
enable iparp vr VR-Default checking
enable iparp vr VR-Default refresh
configure iparp vr VR-Mgmt max_entries 4096
configure iparp vr VR-Mgmt max_pending_entries 256
configure iparp vr VR-Mgmt max_proxy_entries 256
configure iparp vr VR-Mgmt timeout 20
enable iparp vr VR-Mgmt checking
enable iparp vr VR-Mgmt refresh

#
# Module rtmgr configuration.
#
disable iproute sharing
configure iproute priority mpls 20
configure iproute priority blackhole 50
configure iproute priority static 1100
configure iproute priority icmp 1200
configure iproute priority ebgp 1700
configure iproute priority ibgp 1900
configure iproute priority ospf-intra 2200
configure iproute priority ospf-inter 2300
configure iproute priority rip 2400
configure iproute priority ospf-as-external 3100
configure iproute priority ospf-extern1 3200
configure iproute priority ospf-extern2 3300
configure iproute priority bootp 5000
configure iproute ipv6 priority mpls 20
configure iproute ipv6 priority blackhole 50
configure iproute ipv6 priority static 1100
configure iproute ipv6 priority icmp 1200
configure iproute ipv6 priority ospfv3-intra 2200
configure iproute ipv6 priority ospfv3-inter 2300
configure iproute ipv6 priority ripng 2400
configure iproute ipv6 priority ospfv3-as-external 3100
configure iproute ipv6 priority ospfv3-extern1 3200
configure iproute ipv6 priority ospfv3-extern2 3300
configure irdp broadcast
configure irdp 450 600 1800 0
disable irdp "vlan_100"
disable icmp address-mask vlan "vlan_100"
enable icmp parameter-problem vlan "vlan_100"
enable icmp port-unreachables vlan "vlan_100"
enable icmp unreachables vlan "vlan_100"
enable icmp redirects vlan "vlan_100"
enable icmp time-exceeded vlan "vlan_100"
disable icmp timestamp vlan "vlan_100"
enable ip-option loose-source-route
enable ip-option strict-source-route
enable ip-option record-timestamp
enable ip-option router-alert
enable ip-option record-route
configure iproute add default 10.20.30.1 1 vr VR-Default
disable ipforwarding broadcast vlan "vlan_100"
disable icmp useredirects
disable iproute mpls-next-hop
configure ipforwarding originated-packets dont-require-ipforwarding

#
# Module mcmgr configuration.
#
configure igmp snooping cache 32 64
configure igmp snooping timer 260 260 vr VR-Default
configure igmp snooping leave-timeout 1000 vr VR-Default
configure MLD snooping timer 260 260 vr VR-Default
configure MLD snooping leave-timeout 1000 vr VR-Default
disable igmp snooping forward-mcrouter-only vr VR-Default
disable MLD snooping forward-mcrouter-only vr VR-Default
configure igmp 125 10 1 2 vr VR-Default
configure MLD 125 10 1 2 vr VR-Default
enable igmp snooping with-proxy vr VR-Default
enable MLD snooping with-proxy vr VR-Default
configure igmp snooping flood-list none vr VR-Default
configure MLD snooping flood-list none vr VR-Default
disable mvr vr VR-Default

#
# Module aaa configuration.
#
disable radius mgmt-access
configure radius mgmt-access timeout 3
disable radius-accounting mgmt-access
configure radius-accounting mgmt-access timeout 3
disable radius netlogin
configure radius netlogin timeout 3
disable radius-accounting netlogin
configure radius-accounting netlogin timeout 3
disable tacacs
configure tacacs timeout 3
disable tacacs-accounting
configure tacacs-accounting timeout 3
disable tacacs-authorization
configure account admin encrypted Rx/eRH$/B6eZKHiztBgXp.jtO7701
configure account user encrypted YfOfRH$vhxvEH5ktmu0KLYS8sITe/

#
# Module acl configuration.
#
enable access-list refresh blackhole
enable access-list permit to-cpu
configure access-list zone DOS zone-priority 1
configure access-list zone SYSTEM zone-priority 2
configure access-list zone SECURITY zone-priority 3
configure access-list zone DOS application Dos application-priority 1
configure access-list zone SYSTEM application Cli application-priority 1
configure access-list zone SYSTEM application IpSecurity application-priority 2
configure access-list zone SYSTEM application NetLogin application-priority 3

configure access-list zone SECURITY application GenericXml application-priority 2

#
# Module cfgmgr configuration.
#
disable cli-config-logging
configure cli max-sessions 8
configure cli max-failed-logins 3
configure banner


configure idletimeout 20
enable idletimeout
configure debug core-dumps internal-memory

#
# Module dosprotect configuration.
#
disable dos-protect
configure dos-protect interval 1
configure dos-protect type l3-protect alert-threshold 4000
configure dos-protect type l3-protect notify-threshold 3500

#
# Module eaps configuration.
#
configure eaps fast-convergence off
configure eaps config-warnings on
disable eaps

#
# Module edp configuration.
#
configure edp advertisement-interval 60 holddown-interval 180
enable edp ports 1
enable edp ports 2
enable edp ports 3
enable edp ports 4
enable edp ports 5
enable edp ports 6
enable edp ports 7
enable edp ports 8
enable edp ports 9
enable edp ports 10
enable edp ports 11
enable edp ports 12
enable edp ports 13
enable edp ports 14
enable edp ports 15
enable edp ports 16
enable edp ports 17
enable edp ports 18
enable edp ports 19
enable edp ports 20
enable edp ports 21
enable edp ports 22
enable edp ports 23
enable edp ports 24
enable edp ports 25
enable edp ports 26

#
# Module elrp configuration.
#
disable elrp-client

#
# Module ems configuration.
#
disable log debug-mode
configure log filter DefaultFilter add event All
enable log target memory-buffer
configure log target memory-buffer filter DefaultFilter severity Debug-Data
configure log target memory-buffer match Any
configure log target memory-buffer format timestamp hundredths date mm-dd-yyyy event-name condition severity
configure log target memory-buffer number-of-messages 1000
enable log target nvram
configure log target nvram filter DefaultFilter severity Warning
configure log target nvram match Any
configure log target nvram format timestamp hundredths date mm-dd-yyyy event-name condition severity
disable log target console
configure log target console filter DefaultFilter severity Info
configure log target console match Any
configure log target console format timestamp hundredths date mm-dd-yyyy event-name condition severity

#
# Module epm configuration.
#
configure sys-recovery-level All
enable watchdog
configure firmware install-on-demand
enable cpu-monitoring interval 20 threshold 60

#
# Module esrp configuration.
#
configure esrp mode extended

#
# Module etmon configuration.
#
configure sflow sample-rate 8192
configure sflow max-cpu-sample-limit 2000
configure sflow poll-interval 20
disable sflow
disable rmon

#
# Module hal configuration.
#
configure iproute sharing max-gateways 4

#
# Module lldp configuration.
#
configure lldp transmit-interval 30
configure lldp transmit-hold 4
configure lldp reinitialize-delay 2
configure lldp transmit-delay 2
configure lldp snmp-notification-interval 5
configure lldp med fast-start repeat-count 3

#
# Module netLogin configuration.
#
configure netlogin dot1x timers server-timeout 30 quiet-period 60 reauth-period 3600 supp-resp-timeout 30
configure netlogin dot1x eapol-transmit-version v1
enable netlogin logout-privilege
enable netlogin session-refresh 3
configure netlogin base-url "network-access.com"
configure netlogin redirect-page "http://www.extremenetworks.com"
configure netlogin banner ""

#
# Module netTools configuration.
#
configure sntp-client broadcast vr VR-Mgmt
configure sntp-client update-interval 64
disable sntp-client

#
# Module ospf configuration.
#
configure ospf routerid automatic
configure ospf spf-hold-time 3
configure ospf metric-table 10M 10 100M 5 1G 4 10G 2
configure ospf lsa-batch-interval 30
configure ospf import-policy none
configure ospf ase-limit 0
disable ospf originate-default
disable ospf use-ip-router-alert
disable ospf
configure ospf restart none
configure ospf restart grace-period 120
disable ospf export direct
disable ospf export static
disable ospf export rip
disable ospf export e-bgp
disable ospf export i-bgp
configure ospf area 0.0.0.0 external-filter none
configure ospf area 0.0.0.0 interarea-filter none
configure ospf vlan vlan_100 area 0.0.0.0
configure ospf vlan vlan_100 cost automatic
configure ospf vlan vlan_100 priority 0
configure ospf vlan vlan_100 authentication none
configure ospf vlan vlan_100 timer 5 1 10 40
configure ospf vlan vlan_100 restart-helper none
enable ospf vlan vlan_100 restart-helper-lsa-check

#
# Module pim configuration.
#
disable pim
configure pim crp timer 60
configure pim register-suppress-interval 60 register-probe-interval 5
configure pim register-checksum-to include-data

#
# Module poe configuration.
#
disable inline-power
configure inline-power usage-threshold 70
configure inline-power disconnect-precedence deny-port

#
# Module rip configuration.
#
configure rip garbagetime 120
configure rip import-policy none
configure rip routetimeout 180
configure rip updatetime 30
disable rip originate-default
enable rip use-ip-router-alert
disable rip aggregation
enable rip poisonreverse
enable rip splithorizon
enable rip triggerupdates
disable rip
disable rip export direct
disable rip export static
disable rip export ospf-intra
disable rip export ospf-inter
disable rip export ospf-extern1
disable rip export ospf-extern2
disable rip export e-bgp
disable rip export i-bgp

#
# Module ripng configuration.
#
disable ripng
configure ripng garbagetime 120
configure ripng updatetime 30
configure ripng routetimeout 180

#
# Module snmpMaster configuration.
#
configure snmpv3 engine-id 03:00:04:96:20:bd:e2
configure snmpv3 add user admin authentication md5 hex c4:e1:72:6e:ad:7d:34:ca:89:1c:09:24:dd:7a:f6:cb privacy hex c4:e1:72:6e:ad:7d:34:ca:89:1c:09:24:dd:7a:f6:cb
configure snmpv3 add user initial
configure snmpv3 add user initialmd5 authentication md5 hex bd:8e:0f:e6:c2:54:ec:e2:6a:7f:09:dd:d4:54:19:b9
configure snmpv3 add user initialsha authentication sha hex 39:bd:bc:d0:73:c8:de:87:ff:47:d0:c4:aa:3c:84:96:63:9b:e0:d3
configure snmpv3 add user initialmd5Priv authentication md5 hex ed:1d:02:ae:38:94:75:4d:dd:53:d7:7e:4e:af:ab:0d privacy hex ed:1d:02:ae:38:94:75:4d:dd:53:d7:7e:4e:af:ab:0d
configure snmpv3 add user initialshaPriv authentication sha hex cb:2f:04:42:bf:fd:3f:1f:0f:52:cc:9a:91:0e:75:37:87:3d:66:c9 privacy hex cb:2f:04:42:bf:fd:3f:1f:0f:52:cc:9a:91:0e:75:37:87:3d:66:c9
configure snmpv3 add group v1v2c_ro user v1v2c_ro sec-model snmpv1
configure snmpv3 add group v1v2c_rw user v1v2c_rw sec-model snmpv1
configure snmpv3 add group v1v2c_ro user v1v2c_ro sec-model snmpv2c
configure snmpv3 add group v1v2c_rw user v1v2c_rw sec-model snmpv2c
configure snmpv3 add group admin user admin sec-model usm
configure snmpv3 add group initial user initial sec-model usm
configure snmpv3 add group initial user initialmd5 sec-model usm
configure snmpv3 add group initial user initialsha sec-model usm
configure snmpv3 add group initial user initialmd5Priv sec-model usm
configure snmpv3 add group initial user initialshaPriv sec-model usm
configure snmpv3 add access admin sec-model usm sec-level priv read-view defaultAdminView write-view defaultAdminView notify-view defaultNotifyView
configure snmpv3 add access initial sec-model usm sec-level noauth read-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access initial sec-model usm sec-level authnopriv read-view defaultUserView write-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access v1v2c_ro sec-model snmpv1 sec-level noauth read-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access v1v2c_ro sec-model snmpv2c sec-level noauth read-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access v1v2c_rw sec-model snmpv1 sec-level noauth read-view defaultUserView write-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access v1v2c_rw sec-model snmpv2c sec-level noauth read-view defaultUserView write-view defaultUserView notify-view defaultNotifyView
configure snmpv3 add access v1v2cNotifyGroup sec-model snmpv1 sec-level noauth notify-view defaultNotifyView
configure snmpv3 add access v1v2cNotifyGroup sec-model snmpv2c sec-level noauth notify-view defaultNotifyView
configure snmpv3 add mib-view defaultUserView subtree 1 type included
configure snmpv3 add mib-view defaultUserView subtree 1.3.6.1.6.3.16 type excluded
configure snmpv3 add mib-view defaultUserView subtree 1.3.6.1.6.3.18 type excluded
configure snmpv3 add mib-view defaultUserView subtree 1.3.6.1.6.3.15.1.2.2.1.4 type excluded
configure snmpv3 add mib-view defaultUserView subtree 1.3.6.1.6.3.15.1.2.2.1.6 type excluded
configure snmpv3 add mib-view defaultUserView subtree 1.3.6.1.6.3.15.1.2.2.1.9 type excluded
configure snmpv3 add mib-view defaultAdminView subtree 1 type included
configure snmpv3 add mib-view defaultNotifyView subtree 1 type included
configure snmpv3 add community private name private user v1v2c_rw
configure snmpv3 add community public name public user v1v2c_ro
configure snmpv3 add notify defaultNotify tag defaultNotify
enable snmp access
enable snmp traps

#
# Module stp configuration.
#
configure mstp region 00049620bde2
configure mstp revision 3
configure mstp format 0
configure stpd s0 mode dot1d
configure stpd s0 forwarddelay 15
configure stpd s0 hellotime 2
configure stpd s0 maxage 20
configure stpd s0 priority 32768
disable stpd s0 rapid-root-failover
configure stpd s0 default-encapsulation dot1d
enable stpd s0 auto-bind vlan Default
configure stpd s0 tag 0
disable stpd s0

#
# Module telnetd configuration.
#
configure telnet vr all

#
# Module tftpd configuration.
#

#
# Module thttpd configuration.
#

#
# Module vrrp configuration.
#
